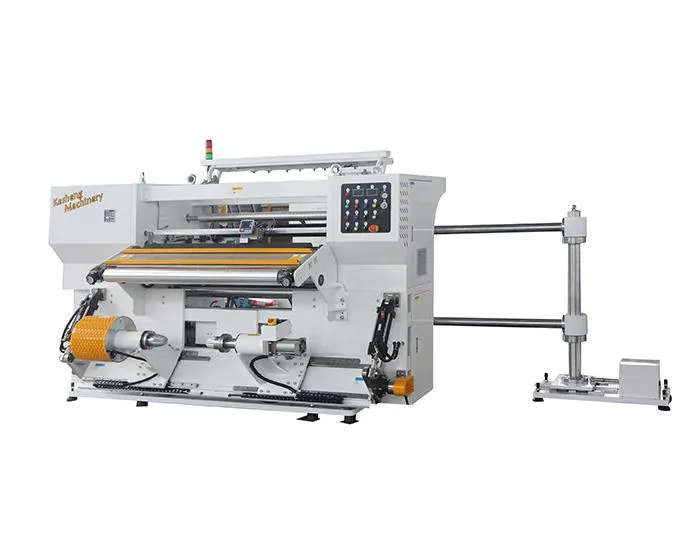

Tsis siv neeg siab ceev Film Slitting tshuab
Kev piav qhia:
High-speed slitting thiab rewinding tshuab rau txhua hom yas yeeb yaj duab, xws li PVC, Petrus, BOBB, PE, thiab lwm yam. Tswj los ntawm PLC, qib ntawm automation yog siab, uas zoo heev pab txoj kev ua tau ntau lawm.
Nta:
1. Lub tshuab phab ntsa thickness yog 50 hli nrog lub siab muaj zog thiab tsis tshua muaj kev ntxhov siab. Nws ruaj khov tom qab ob zaug kev ntxhov siab.
2. NSK bearings yog saws nyob rau hauv txhua qhov chaw sib zog.
3. Tag nrho cov cav ntim tshuab yog ua tiav hauv CNC tshuab center hauv Kesheng.
4. Khij nres ceev xwm ceev thiab rub txoj hlua hloov yog ntsia rau sab nraud.
5. Kev ua haujlwm tsis zoo lossis kev ua yuam kev yuav ceeb toom ob leeg rau ntawm kev tswj vaj huam sib luag thiab kev ceeb toom siren.
6. Npaum ntawm qhov tsawg dua rau tag nrho cov khoom kom raws li kev siab ceev.
7. Cov Kev Txiav Txim Sib Cais (xaiv los tau) - Muaj peev xwm muab nruab rau hauv lub tshuab raws li tus neeg tuaj yeem xaiv.
8. Ncua Lub Chaw - Lub tshuab muaj nws cov khoom khib nyiab tawm. Tom qab txoj kab txiav, lub dov tiav lawm tuaj yeem tsis tau poob rau lub khib nyiab tawm. Tom qab tig lub caj npab, nws yog qhov yooj yim rau unload cov khoom thiaj li txo txoj kev ua hauj lwm khov, zog thiab poob.
Parameter:
| Unwinding inch | Max Ø800mm |
| Rewind taub | Max Ø450mm |
| Max ua haujlwm dav | 1300 hli |
| Unwind tub ntxhais txoj kab uas hla | Ø76mm (3 ") / Ø152mm (6") |
| Rewind core lub cheeb | Ø76mm (3 ") / Yeem Ø152mm (6") |
| Min. slitting dav | 30 hli / Yeem 25 hli |
| Mechanical ceev | Max 450m / min (nyob ntawm cov haujlwm ua haujlwm) |
| Khoom thickness ntau | 0.012mm-0.15mm |
| Traction servo tsav | 1 teeb 3.0 kw |
| Rewinding servo motors | 2 Teem caij 3.0 kw |
| Blower tsav | 1 Teeb 1.5 kw |
| Tag nrho kev siv zog | Nws yog 12 kw |
| Pneumatic siab | 0.6 Mpa |
| Fais fab tuag voltage | AC 380V ± 5% Peb-theem tsib-xaim, 50Hz |
| Qhia cov lus tseeb | ± 0.3 hli |
| Web guiding Movement ntau | ± 100 hli |
| Tshuab dimension | L2400 * W3400 * H2200mm |
| Nyhav | 4300 kg |
